Product Description

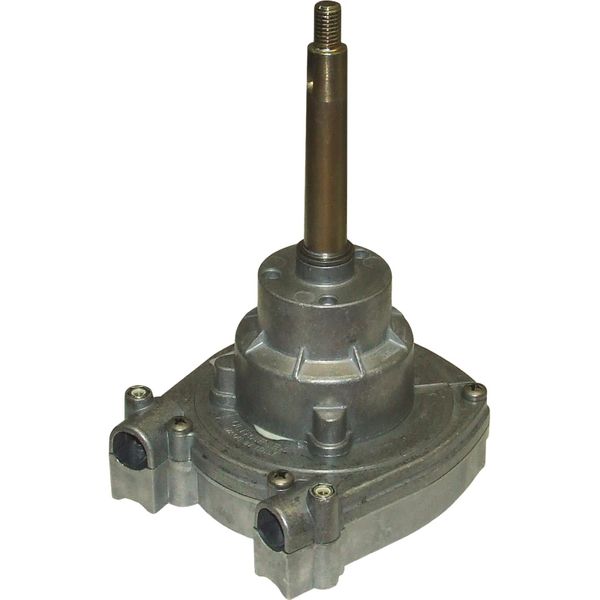

ULTRAFLEX T73 Heavy Duty Fast Connect Non Feedback Steering Helm
Requires: X34 or Similar Fitting Kit
Common features:
Planetary Gear Design.
Particularly suitable where clearance is limited.
All stainless steel cable output ends as per ABYC safety standards.
Made exclusively in corrosion resistant materials.
Optional 90° or 20° installation.
Standard 3/4" tapered shaft.
Maximum steering wheel diameter: 406mm (16").
Stroke: 228mm (9").
Minimum steering cable bend radius 200mm (7.9").
Maximum operating load at the tiller end:3300N (340kg; 750lbs).
Should not be used on boats equipped with engines that exceed the max horsepower rating of the boat.
Exceeds ABYC P17 & EN 28848 safety standards.
